Description

Ultrasound- Portable US 1000

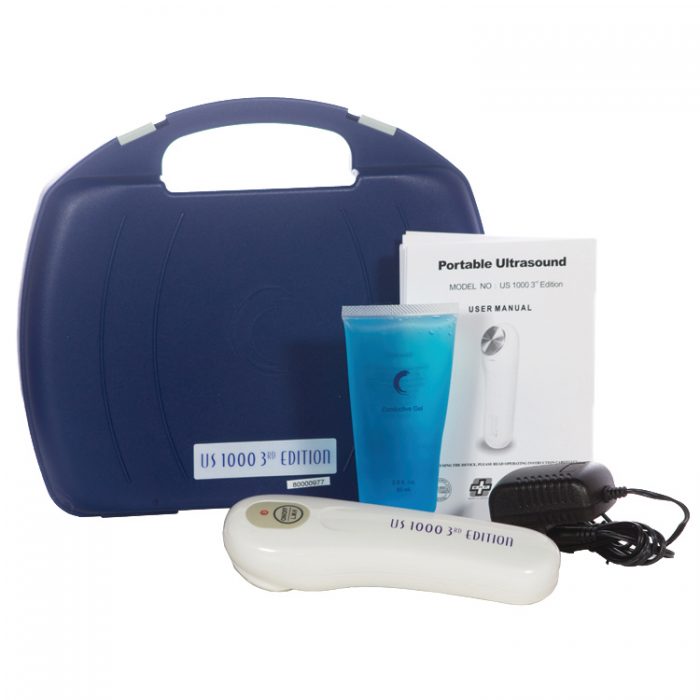

The US 1000 offers effective ultrasound therapy by generating deep ultrasonic waves within body tissues to treat pain, muscle spasms and joint stiffness. The portable unit comes as a complete kit with carrying case, AC adapter, ultrasound gel and manual.

• Therapeutic ultrasound device that generates deep heat to effected area
• Device must be used with ultrasound gel to conduct the ultrasound energy to the skin
• Three power output settings
• Comes complete with ultrasound, AC adapter, carrying case, ultrasound gel and instruction manual
• Six month warranty on unit

Specifications:

• Power Source: AC Adapter – 100-240 Volts AC Input (DC 15V)
• Frequency: 1.0 MHz ± 10%
• ERA Treatment Area: 6.16 cm² ± 20%
• Temporal Maximum Power: 4W ± 20%
• Output Mode: Pulse
• Output Intensity: 1.6W/cm² (Low), 2.6W/cm² (Medium), 4.6W/cm² (High)
• Duty Cycle: 8% (Low), 14% (Medium), 29% (High)
• Pulse Width:
  • Low: 8% 0.5mS ± 10%
  • Medium: 14% 1mS ± 10%
  • High: 29% 2mS ± 10%
• Repetition Rate: 150Hz ± 10%
• Working Time: 30 Minutes
• Material of Applicator: Aluminum
• Beam Type: Collimated
